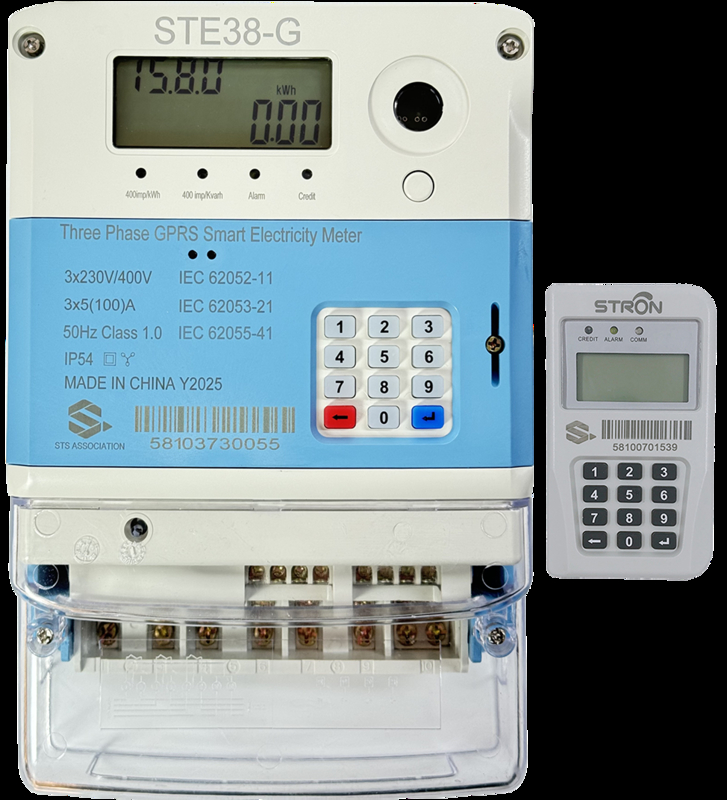

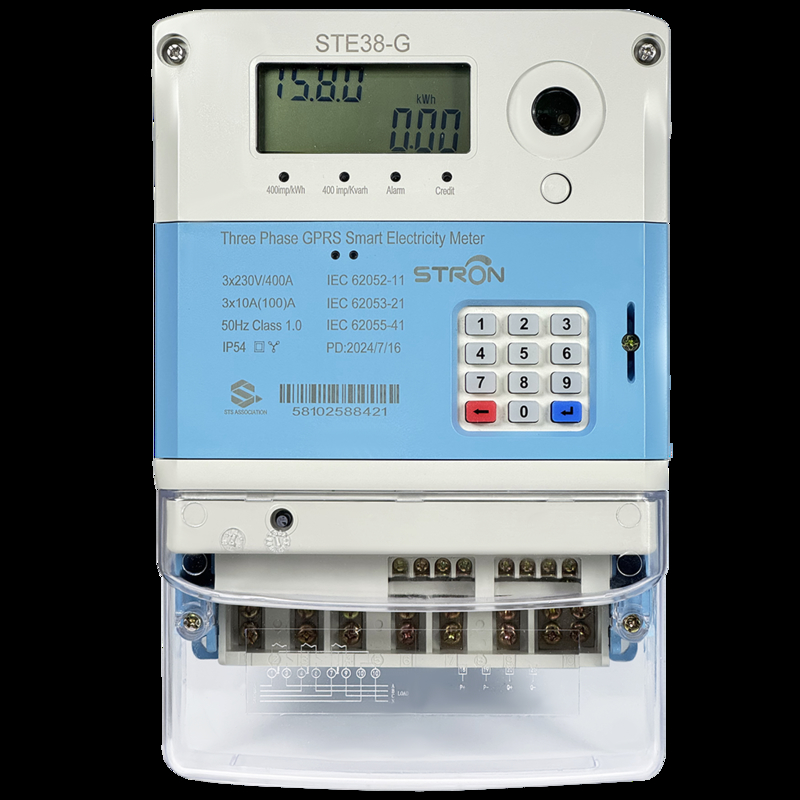

GPRS STS Power Meter Electricity Energy Monitor 3 Phase Smart Energy Meters With LCD Energy Meter

1.1 Keypad Control: ·Check the data in the meter. ·Recharge, clear tamper and clear credit operations. ·The meter is a STS standard electricity meter, which requires users to enter a 20-digit token to top up, clear credit, and clear tamper.

1.2 Remote Communication: · The three phase GPRS smart electricity meter has GPRS communication, it supports web-page or APP control in the computer and mobile phone anytime and anywhere. ·The three phase GPRS smart electricity meter has RF wireless remote reading function, using CIU to read the data , the communication distance is 500M.

1.3 Anti-Tamper: When the transparent protective cover is opened, the tamper switch is triggered, the valve will be closed and the "Warning" indicator will show yellow light. This function plays the role of power theft protection. 6.4 Parameter Settings: There is an infrared interface on the meter, Admin could use it setting special parameters for the meter. 6.5 Credit Alarming: The "Credit" indicator flashes red light when the meter has insufficient credit. The "Alarm" indicator shows yellow light when the credit is zero.

The prepaid three phase four wires electricity meter adopted large scale integrated circuit and digital sampling techniques, designed for the power system, communication industry, construction industry and other power monitoring and power measuring needs. It mainly measures and displays the parameters of three-phase voltage, three-phase current, active power, reactive power, frequency, positive and negative electric energy, and four-quadrant electric energy in real time.

The RF communication module for remote functions could be added, which is convenient for users to monitor electricity consumption, collect data and switch on/off for the smart meter. As a monitoring terminal product of energy management system, it can be widely used in the internal power assessment and monitoring of industrial and mining enterprises, hotels, schools, large public buildings.
